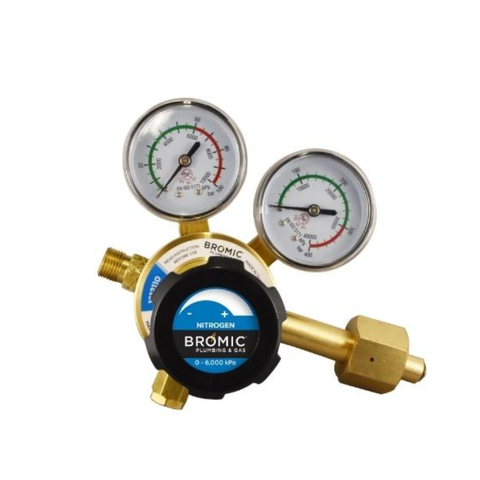

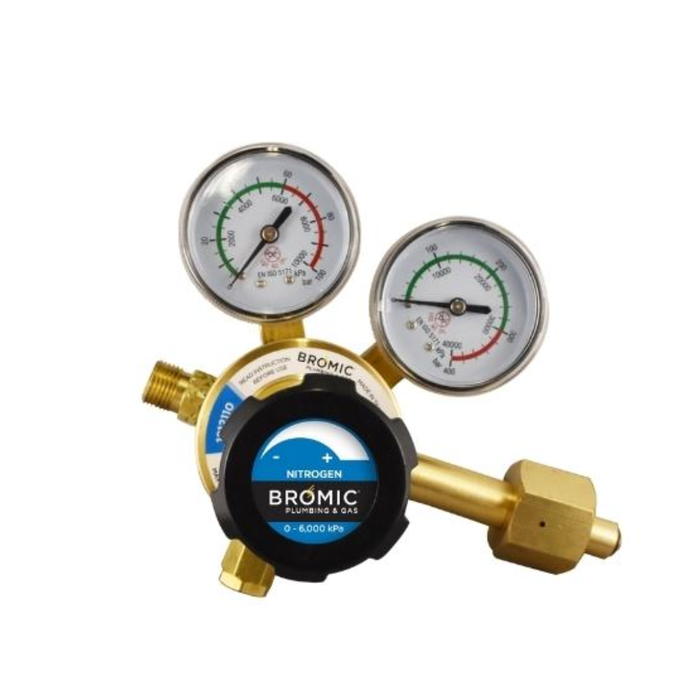

Bromic Nitrogen Regulator 6,000 Kpa

SKU:
NITROREG
Price:
$231.00 ex GST
Make an Enquiry

Description

Bromic Nitrogen Regulator 6,000 kPa
Max inlet pressure: 30,000 kPa
• Max outlet pressure: 6,000 kPa
• Thread inlet: AS2473 Type 50
with 95mm stem
• Thread outlet: SAE ΒΌ” Flare
• Single stage regulator
5 YEAR WARRANTY

Product Details

This high pressure nitrogen regulator is precision-engineered from machined brass to offer trade quality for use in purging of HVAC systems — and comes backed by a 5-year warranty.

Conforming to Australian Standard AS4267, it is specifically engineered for the critical task of purging air conditioning and refrigeration systems, delivering reliable performance up to 6,000 kPa.

Key Features

  • Forged brass body — trade-quality durability for long-lasting performance
  • Sintered metal inlet filter — effectively traps impurities for clean gas flow
  • No soldered joints — allows for easy maintenance and servicing
  • Factory-set maximum delivery pressure for safe, reliable operation
  • Fully encapsulated seat for enhanced durability and leak prevention
  • Colour-coded components for quick gas identification and on-site safety
  • Type 50 W24 × 2RH thread inlet with included adapter for 5/16" flare outlet
Specifications
Spec Detail
Max Inlet Pressure 30,000 kPa
Max Outlet Pressure 6,000 kPa
Body Material Forged / Machined Brass
Standard AS4267
Warranty 5 Years
Part Number 1812110
