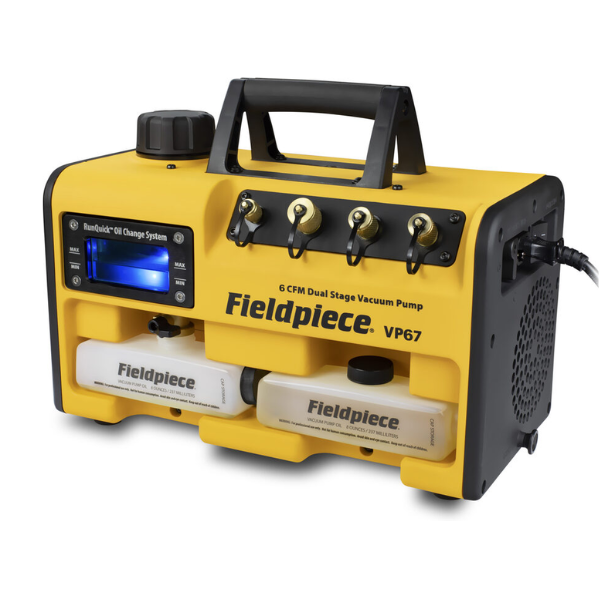

Fieldpiece VP67INT [170 l/m] Vacuum Pump for Air Conditioning & Refrigeration
Description
VP67INT Fieldpiece 2-Stage Vacuum Pump 170 l/min [6CFM] with RunQuick Oil Change System. Backlit Oil Reservoir. 15 Micron ultimate Vacuum. 1/2 Hp AC motor. Includes 2 x 8oz Full Oil Containers. A2L Ref.Suitable [ R32.]
Fieldpiece VP67INT Vacuum Pump — 170L/m (6 CFM)
A two-stage rotary vane vacuum pump built for air conditioning and refrigeration evacuation. The VP67INT features Fieldpiece's RunQuick oil change system, allowing oil to be replaced in under 20 seconds without turning off the pump or losing vacuum — a practical advantage on the job where downtime matters. A backlit oil reservoir lets you check oil condition at a glance, and the wide base prevents tipping during use.
Four in-line ports (1/4", 3/8", 1/2") accommodate different hose sizes without adapters, and the pump is A2L compatible covering R32, R1234YF and other low-GWP refrigerants. Water resistant to withstand direct rain on site.
Key features:
- 170L/m (6 CFM) flow rate
- 15 micron ultimate vacuum
- RunQuick oil change system — change oil in under 20 seconds while running
- Backlit oil reservoir — monitor oil condition at a glance
- Four in-line ports: 1/4", 3/8", 1/2"
- A2L compatible — R32, R1234YF, R1234ZE and other low-GWP refrigerants
- Water resistant
- Includes 2 × 237ml RunQuick oil cartridges
Suitable for: Air conditioning and refrigeration system evacuation on residential and light commercial jobs
Trade note: Fieldpiece products at Fastflex are order-in only. Contact us to place an order.
| Spec | Detail |
|---|---|
| Brand | Fieldpiece |
| Model | VP67INT |
| Flow rate | 170 L/m (6 CFM) |
| Ultimate vacuum | 15 microns (2 Pa) |
| Compressor | Rotary vane, two-stage |
| Motor | 1/2 HP AC |
| RPM | 3440 |
| Power supply | 240V AC @ 50Hz, 1 phase |
| Current draw | 5.0A |
| Oil capacity | 237ml (8oz) |
| Ports | (1) 1/4", (2) 3/8", (1) 1/2" |
| Dimensions | 201 × 296 × 406mm |
| Weight | 13.2kg |
| Operating temp | -1.1°C to 50°C |
| A2L compatible | Yes |
