Eco Duct Horizontal Bend 300 X 70 - 90*
Description

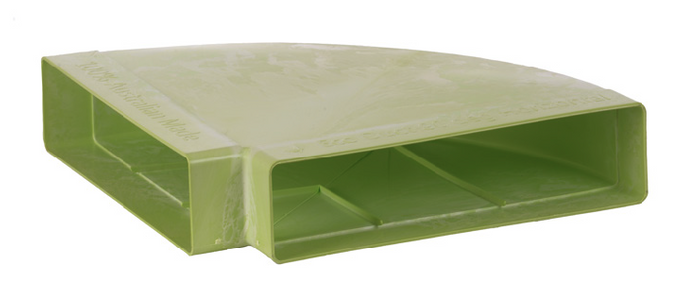

300 x 70 - 90° Horizontal Bend Eco Duct Green ( 22 pascals )
UL 181.11-2013 AS/NZS 1530.3-1999
( ECO300HOR90 )
300 x 70mm 90° Horizontal Bend — Eco Duct Green | 22 Pa | UL 181 / AS/NZS 1530.3
The 300 x 70mm 90° Horizontal Bend is the key fitting for right-angle direction changes in the horizontal plane on Eco Duct low profile duct systems. Where ceiling cavities, wall chases or subfloor spaces require a full 90° turn, this purpose-made fitting delivers a clean, consistent cross-section change of direction — far superior to bending or kinking the flexible duct on site.
At 22 Pa pressure loss, this fitting carries a higher resistance than the 45° equivalent, which is expected for a full right-angle turn. Accounting for it correctly at the design stage ensures the system performs as specified.
Key Features
- 90° horizontal direction change — purpose-made fitting for full right-angle turns in the horizontal plane on 300 x 70mm low profile duct systems
- 22 Pa pressure loss rating — accounts for the increased resistance of a full 90° turn; must be factored into system static pressure calculations
- Green colour coded — matches the 300 x 70mm Eco Duct range for instant size identification on site
- UL 181.11-2013 certified — meets USA standard for air ducts and air connectors for fire resistance and material performance
- AS/NZS 1530.3-1999 compliant — meets Australian and New Zealand standard for ignitability, flame propagation, heat release and smoke release
- Purpose-built fitting — engineered specifically for the Eco Duct system, maintaining consistent cross-section and a secure, airtight connection at the bend
Suitable For
Full right-angle direction changes in the horizontal plane on 300 x 70mm Eco Duct low profile duct systems in residential and light commercial ducted split system installations — ceiling cavities, wall chases, subfloor spaces and any application requiring a 90° horizontal turn while maintaining the low profile rectangular cross-section.
Trade note: At 22 Pa per fitting, a single ECO300HOR90 represents more than two full 2-metre straight duct lengths in pressure loss terms. Where possible, substitute two ECO300HOR45 fittings (2 × 5 Pa = 10 Pa total) to achieve the same 90° direction change at less than half the pressure penalty. Reserve the ECO300HOR90 for installations where space constraints make the two-fitting approach impractical.
Specifications
| Part Number | ECO300HOR90 |
| Duct System | Eco Duct Low Profile |
| Dimensions | 300mm x 70mm |
| Fitting Type | 90° Horizontal Bend |
| Static Pressure Loss | 22 Pa |
| Colour | Green |
| Standard (AU/NZ) | AS/NZS 1530.3-1999 |
