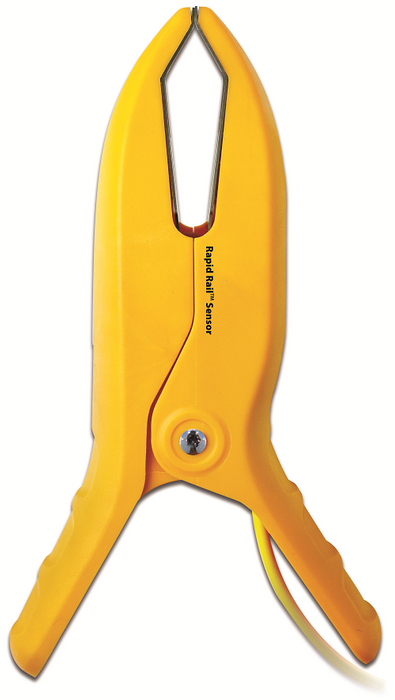

Fieldpiece TC48 Pipe Clamp Style Thermocouple with Jaw opening 105mm
Description
TC48 Fieldpicec - K-T/couple 100mm Jaw Opening Pipe Clamp with 800mm Flex Lead
TC48 Pipe Clamp Style K-Type Thermocouple to get your pipe temperatures fast
With the ability to measure pipes up to 4 1/8”, our new wired and wireless pipe clamps are large and in charge – a perfect match for any commercial or refrigeration HVAC-R pro in search of lightning-fast precision readings without the inconvenience of straps, tape or zip ties.
Our patented Rapid Rail™ Sensor Technology uses electrically conductive pipe to complete the circuit so readings stabilize immediately, unlike the other guys that can take several minutes.
Plus, measurements are not affected by ambient air, wind, or moisture on the pipe surface – culprits known to throw readings off by as much as 3-4 degrees.
- As the fastest pipe clamp in the industry, techs who prefer a longer cord @ 1.8metres – can choose the model TC48, for less crouching and more range which includes a Type K male mini plug for a universal fit.
- For those who enjoy more freedom, go to the Fieldpiece Job Link® System mobile app enabled JL3LC —enabling 300 metres wireless communication of full system details with building managers, documenting system performance, and more. It also communicates wirelessly with the SMAN® Refrigerant Manifolds, models SM380V and SM480V.
No matter your preference – both the TC48 and JL3LC are sturdy, rugged, reliable and extremely accurate no matter the
environment.
Features and Specs:
- Pipe Contact Surface Compatibility: Electrically conductive
- Pipe Size Compatibility: 3/4" to 4 1/8" (19.05mm to 104.78mm) OD
- Rapid Rail™ Sensor Technology thermocouple (nickel chromium / nickel aluminum)
- Type K male mini plug for a universal fit (TC48)
- Measurement Range: -46°C to 125°C
- Stabilizes in 3 seconds
- ±2.2°C thermocouple accuracy, only ±0.6°C after field calibration*
- Waterproof, rugged, and built to withstand the rigors of field use
| SKU | TC48 |
| Brand | Fieldpiece |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.120m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.005400000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.300m |
| Assembled Height | 0.120m |
| Assembled Width | 0.150m |
