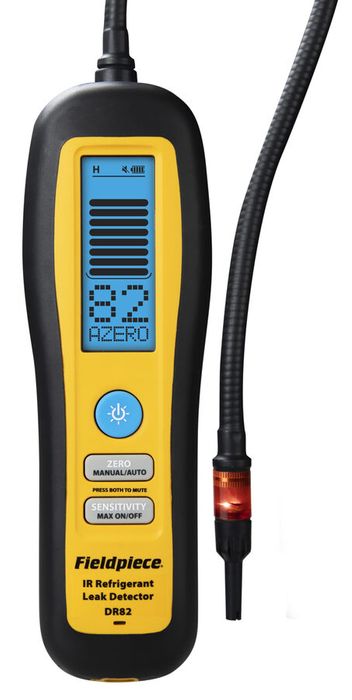

Fieldpiece DR82: Infrared Leak Detector for Refrigerants

SKU:
FPDR82
Price:
$716.00 ex GST
Make an Enquiry

Description

DR82 Fieldpiece Infrared Refrigerant Leak Detector with LCD Display & back Light. IP54. HFC, HCFC, CFC, HFOs and blends.Includes 10 yr long life IR Sensor. Blow moulded Carrying Case (ABM2) AC Charger and USB-C Cable (RCA3) 5 x Filter Tips and Gaskets (RFT6)

Product Details

DR82 - Infrared Refrigerant Leak Detector

Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVACR


Like all of Fieldpiece's test instruments, the DR82 Infrared Refrigerant Leak Detector is designed exclusively to make the HVACR Technician's job easier, faster, safer and more efficient. You are in control with the manual or automatic zeroing function - it's your choice.

The highest possible sensitivity.
If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <1.0 gram/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends.

The ergonomic design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The ten-hour battery life lets you work all day before recharging. If need you can still use it while charging! The mute and Max mode functions allow you to work the way you want to work.

DR82 Features designed for HVAC-R

  • 10-year sensor life
  • Doesn’t trigger on soap bubbles and oil
  • Compact – designed to fit in your hand
  • Multiple alarms
  • LED lighted tip and loud beep help find leaks in noisy and dark environments
  • Sensitivity better than 0.03 oz/yr (1g/yr)
  • Ruggedized and IP54-certified
  • 10-hour battery charge
  • Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
  • Non-conductive, sturdy probe that stays where you want it.
  • Weighs less than a pound
  • Works on A2L Refrigerants





                                          REFRIGERANT CLASS INFORMATION

Specifications
Specifications
  • Sensor Type: Infrared (IR)
  • Sensor Life: 10 years typical
  • Sensitivity Levels: High, medium, low, turbo (selectable)
  • Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
  • Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
  • Refrigerants: HFC, HCFC, CFC, HFOs, and blends
  • Response Time: <1 seconds typical
  • Recovery Time: <5 seconds typical
  • Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
  • Charge Time: 6 hours typical with included charger.
  • Battery Life: 10 hours typical, backlight off
  • Auto Power Off: 10 minutes without detection or button press
  • Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH
  • Weight: 14 oz (400g)
  • Water Resistance: Designed to IP54
  • US Patent: www.fieldpiece.com/patents




SKU DR82
Model # DR82
Brand Fieldpiece
Shipping Weight 2.5000kg
Shipping Width 0.150m
Shipping Height 0.350m
Shipping Length 0.400m
Shipping Cubic 0.021000000m3
Unit Of Measure ea
Assembled Length 0.400m
Assembled Height 0.350m
Assembled Width 0.150m
