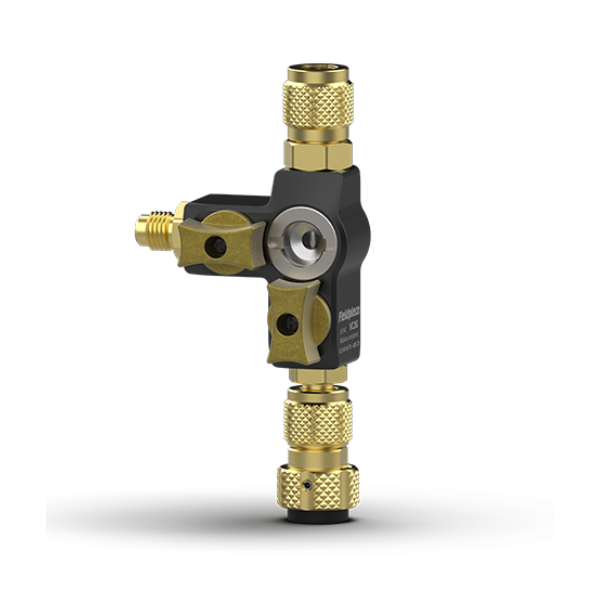

Fieldpiece VC2GE: 1/4" & 5/16" Valve Core Removal Tool w/Dual Ball Valve & Sight Glass

SKU:

FPVC2GE

Price:

$266.00 ex GST

Make an Enquiry

Description

VC2G Fieldpiece Valve Core Removal Tool with 2x Ball valves. Vacuum rated to 20 microns. Includes 1/4" & 5/16" Swappable service port fittings. A2L Compatible.With Sight Glass & free spinning Comfort Cap

Product Details

Fieldpiece VC2G — Dual Ball Valve Core Removal Tool with Sight Glass

The top of the Fieldpiece VCRT range. The VC2G has an integrated sight glass so you visually verify the valve core is engaged before removing it, as well as confirm refrigerant is flowing — and a second ball valve on the side port protects your vacuum and pressure gauges.

That second ball valve is the key differentiator over the VC1G. Recommended best practice when using a VCRT with a vacuum gauge is to add a secondary isolation valve to the side port — by building it directly into the body of the VC2G, Fieldpiece creates a more securely sealed system and gives technicians more flexibility to customise their service setup. Isolate either side independently, connect multiple hose lines, and protect your gauges without adding extra fittings.

The capture rod reliably engages the valve core the first time, every time — a gasket secures the valve core pin so there's no fishing around for lost cores. The comfort spinner — a free-spinning, rubberised magnetic cap — lets you apply linear pressure with one hand and rotate with the other, making removal and insertion against system pressure easier and more controlled.

A2L compatible and vacuum-rated to 20 microns, suitable for use with R-12, R-22, R-32, R-134a, R-404A, R-407A, R-410A, R-454B, R-507 and R-1234yf. The 1/4" service port fitting swaps to an optional 5/16" fitting (sold separately as RVC5) for mini-split systems.

Key features:

Integrated sight glass — verify valve core engagement and refrigerant flow before removal
Dual ball valves — isolate vacuum gauge or pressure probe without extra fittings
Capture rod engages valve core first time — gasket secures pin
Comfort spinner — free-spinning rubberised magnetic cap for easier operation under pressure
Magnetic cap retains removed valve core during service
Swappable service port fitting — 1/4" standard, optional 5/16" for mini-splits (RVC5, sold separately)
Vacuum rated: 20 microns
Working pressure: 800 psi
A2L compatible — R-22, R-32, R-410A, R-454B, R-1234yf and more
Replacement capture rod assembly: RVCRL
Replacement O-rings: RVCG10
Dimensions: 128mm x 67mm x 38mm
Weight: 272g
