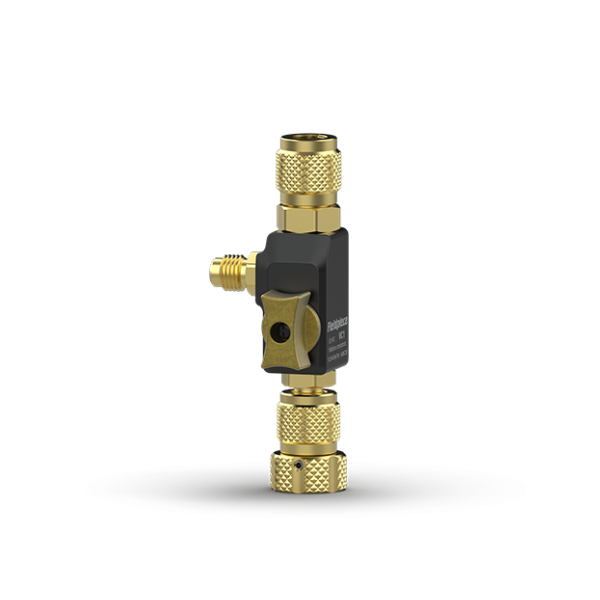

Fieldpiece VC1: 1/4" Valve Core Removal Tool

SKU:
FPVC1
Price:
$153.00 ex GST
Make an Enquiry

Description

VC1 Fieldpiece Compact model Valve Core Removal Tool with 1x Ball valve. Vacuum rated to 20 microns. 1/4. A2L Compatible.No Sight Glass

Product Details

Removing a valve core speeds up charging, recovery and evacuation — but doing it in a tight space with a bulky VCRT is a pain. For tight spaces, the ultra-compact VC1 is your go-to VCRT. The short length and low-profile ball valve let it fit where other tools won't.

The capture rod reliably engages the valve core the first time, every time — a gasket secures the valve core pin so there's no fishing around for lost valve cores. The magnetic cap keeps the removed valve core on hand during service so it doesn't disappear into a roof cavity or drop into a condenser.

Vacuum-rated to 20 microns and compatible with high-pressure refrigerants including R410A. A2L compliant — base materials won't degrade from exposure to related gases and lubricants. The standard 1/4" service port fitting can be swapped in the field for an optional 5/16" fitting (sold separately as RVC5) for mini-split systems.

Key features:

  • Ultra-compact design — short length, low-profile ball valve for tight spaces
  • Capture rod engages valve core first time — gasket secures valve core pin
  • Magnetic cap retains removed valve core during service
  • Swappable service port fitting — 1/4" standard, optional 5/16" for mini-splits (RVC5, sold separately)
  • Vacuum rated: 20 microns
  • Working pressure: 800 psi
  • A2L compliant
  • Compatible with R410A and high-pressure refrigerants
  • Replacement capture rod assembly available: RVCRS
  • Replacement O-rings available: RVCG10

What's in the box:

  • VC1 valve core removal tool
  • 1/4" service port fitting
  • Valve core
  • User guide
