Fieldpiece SC260 TRMS Combination Mini Clamp Meter
Description

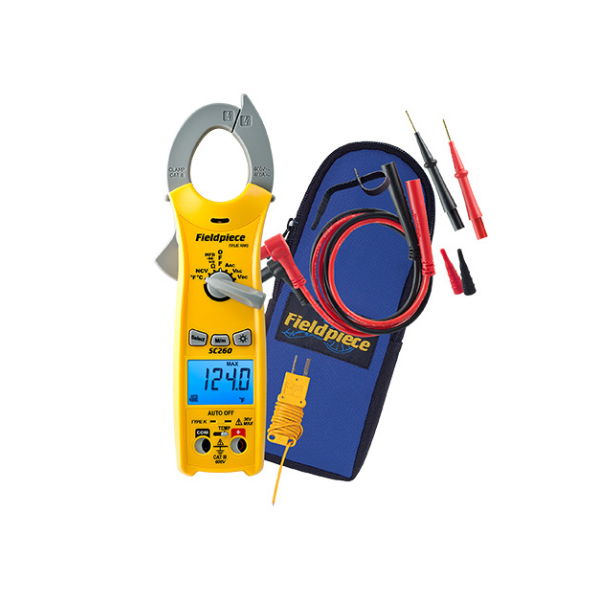

SC260 Fieldpiece Mini Combination Clamp Meter 400 AAC Clamp meter, Temp, NCV, Capacitance, Diode Test. ANC4 Case, leads, ATB1 T\Cple. Blue back-light.
A compact, no-nonsense clamp meter built specifically for HVACR electrical diagnostics. Small enough to fit in a pocket or glove box, the SC260 is ideal for testing in tight panels and confined spaces where a full-size clamp meter won't fit — without sacrificing the measurement capability you need on a real job.
True RMS measurement means accurate readings on variable frequency drives and other non-linear loads — the kind of inaccuracy you get with average-responding meters on modern HVACR equipment is eliminated. Auto Select mode saves time on the job — set the dial, connect your leads, and the meter automatically selects the correct measurement function depending on what it detects.
High temperature resistance means you can move from a cold freezer to a hot rooftop and still get accurate temperature measurements that lesser meters can't handle. The backlit display keeps readings clear in dark roof spaces, ceiling cavities and switchboards, and the sturdy swivel magnet lets you hang the meter hands-free while you work.
What it measures:
- AC current (clamp jaw) — up to 400A
- AC/DC voltage — up to 600V
- Resistance — up to 40 MΩ
- Capacitance
- Temperature — °C and °F
- Continuity with audible beep
- Non-contact voltage (NCV)
- Diode test
What's in the box:
- SC260 clamp meter
- Test leads
- 9V battery
- User guide
Key specs:
- True RMS
- Auto Select mode
- Jaw opening: 30mm (1.2")
- Display: 4,000 count backlit LCD
- Voltage accuracy: ±0.5% (DC), ±1.5% (AC)
- Safety rating: CAT III 600V
- Swivel magnet hanger — hands-free use
- Operating temperature: 0°C to 50°C
- Battery: 9V alkaline — up to 150 hours
- Auto power-off: 30 minutes
- Dimensions: 205.5mm x 67.4mm x 45.1mm
