FDUA250VH/C MITSUBISHI

Price:
$2,717.00 ex GST
Make an Enquiry

Description

FDUA250VH/C MHI DUCT INVERTER HIGH STATIC R32 INDOOR ONLY
23.5 KW COOL / 28.0 KW HEAT
(6.9 kw-28.0 kw cool/5.5 kw-31.5 kw heat) 1333 L/SEC @ 200 PASC
1/2" - 7/8" Pipe Size up to 35 metres
1/2" - 1-1/8" pipe size up to 70 metres
1455 x 255 s/air trans & r/air same
indoor 1600w x 893d x 379h (89 KGS)

Product Details

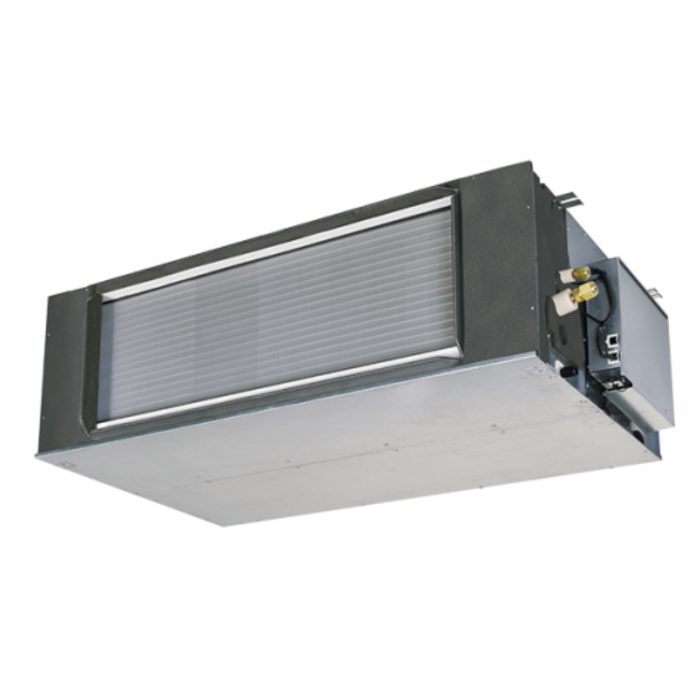

Mitsubishi Heavy Industries FDUA250VH/C – 23.5kW Ducted Inverter High Static Indoor Unit

Built for large-scale commercial and demanding residential applications, the Mitsubishi Heavy Industries FDUA250VH/C is a high-static ducted inverter unit delivering exceptional capacity and flexibility across extensive duct runs.

Important – Indoor Unit Only This listing is for the indoor ducted unit only. Outdoor unit, controller, and accessories are not included.



Features

  • High-static ducted design — 200 Pa external static pressure rating makes this unit suitable for complex, long duct systems in large commercial buildings, warehouses, and multi-zone applications
  • Inverter technology with a wide modulation range (6.9–28.0 kW cooling / 5.5–31.5 kW heating) delivers precise capacity matching and significant energy savings across part-load conditions
  • R32 refrigerant — lower Global Warming Potential (GWP) compared to R410A, aligned with modern environmental standards
  • Generous airflow output of 1,333 L/sec supports large floor areas and extended duct networks
  • Extended pipe runs — supports up to 70 metres with appropriate pipe sizing, ideal for plant room or roof-mounted outdoor unit installations
  • Same-side supply and return air (1,455mm face) simplifies installation in ceiling plenums and plant rooms with restricted access
  • Wide capacity range allows the unit to scale back during low-demand periods, reducing energy consumption and wear
  • Robust build quality from Mitsubishi Heavy Industries — engineered for continuous commercial duty



Specifications

Key Specifications

Model FDUA250VH/C
Cooling Capacity 23.5 kW (range: 6.9 – 28.0 kW)
Heating Capacity 28.0 kW (range: 5.5 – 31.5 kW)
Unit Type Ducted Inverter – High Static
Refrigerant R32
Airflow 1,333 L/sec @ 200 Pa
Supply & Return Air 1,455mm — same side (trans & return)
Indoor Unit Dimensions 1,600W x 893D x 379H mm
Weight 89 kg
Pipe Size (up to 35m run) Liquid: 1/2" / Gas: 7/8"
Pipe Size (up to 70m run) Liquid: 1/2" / Gas: 1-1/8"
