Haier Smart Power 24.0kW High ESP Ducted System R410a AD250S5SG2FG-SET (51792)

SKU:
HAID24KWSET
Price:
$6,723.20 inc GST
Make an Enquiry

Description

AD250S5SG2FG-SET (51792)
{Smart Power 24.0kW High ESP Ducted System R32} no controller

Product Details

Haier High ESP Ducted R32 — 22kW Set (AD250HA2FB-SET)

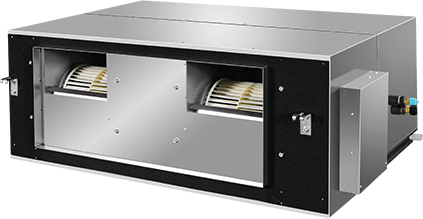

The Haier AD250HA2FB-SET is a high static pressure ducted air conditioning system delivering 22kW cooling and 25kW heating, designed for large homes, commercial applications and complex installations requiring serious capacity and extended pipe runs.

Running on R32 refrigerant with an inverter twin rotary compressor and DC fan motor, this system delivers efficient, precise performance across a wide operating range. The high static pressure design allows for greater flexibility in duct layout, and the indoor unit fits within standard Australian truss spacings of 600mm. Blue Fin coil coating provides corrosion protection for long-term durability.

Compatible with the optional SmartZone controller for up to eight individually controllable zones. Includes SmartHQ Wi-Fi control for remote operation via the SmartHQ app, with Google Home and Amazon Alexa voice control support. DRED (Demand Response) ready and VEU approved.



Specifications

Specifications — Haier AD250HA2FB-SET High ESP Ducted R32 220


Cooling capacity 22kW
Heating capacity 25kW
EER 3.18
COP 3.72
Refrigerant R32
Compressor type Inverter twin rotary
Compressor quantity 1
Motor type DC motor
Refrigerant factory charge 5.2kg
Airflow 1400 / 1250 / 1100 / 1000 L/s
Indoor sound pressure (SPL) 63 / 61 / 60 / 53dBA
Outdoor sound power (SWL) 79dBA
Outdoor sound pressure (SPL) 63dBA
Working temp — cooling -10°C to +50°C
Working temp — heating -20°C to +24°C
Power supply 400V / Three phase / 50Hz
AMP draw 10.2A
Minimum circuit amps 12.2MCA
Pipe size — gas 19.05mm (3/4")
Pipe size — liquid 12.7mm (1/2")
Maximum pipe length 75m
Indoor unit model AD250S5SH2FA
Indoor unit dimensions (W x H x D) 1330 x 500 x 895mm
Indoor unit weight 92.5kg
Outdoor unit model 1U250S5SA2FB
Outdoor unit dimensions (W x H x D) 1050 x 1635 x 400mm
Outdoor unit weight 143kg
Included accessories SmartHQ Wi-Fi control
Wi-Fi compatible Yes (included)
Voice control Google Home / Amazon Alexa
DRED ready Yes
VEU approved Yes
Auto restart Yes
Sleep mode Yes
Self diagnostics Yes
24-hour timer Yes
Blue Fin coils Yes
Electronic expansion device Yes
Cyber security updates until 31/01/2028
Warranty 5 years parts and labour
