Arth30Khta / Aoth30Kbta 8.5 Kw Fujitsu Ducted Complete Inc Uty-Rnrt Controller R32

SKU:
FUJDSTD8.5
Price:
$3,137.00 ex GST
Make an Enquiry

Description

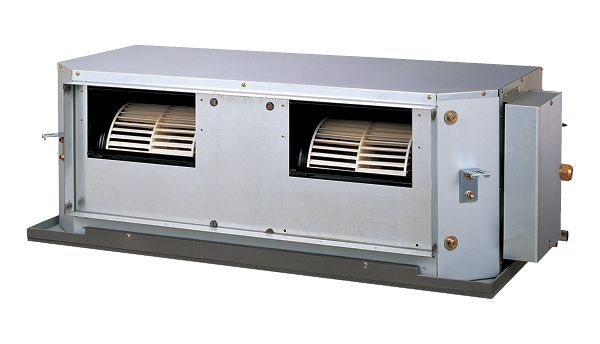

ARTH30KHTA / AOTH30KBTA 8.5 KW
FUJITSU DUCTED COMPLETE INC UTY-RNRT CONTROLLER R32
1 PHASE HI STATIC STANDARD
8.5 KW COOL / 10.0 KW HEAT
695 L/SEC @ 210 PASC
3/8 - 5/8 PIPE SIZE
850 x 295 s/air trans
865 x 325 r/air trans
Pre Charged 30 metres / max 50 metre
indoor 1050 w x 500 d x 400 h 39 KGS
outdoor 940w x 788h x 320d 52 KGS
* MAX CURRENT AMPS*
Flare Connection
**VEU REGISTERED**

Product Details

The Fujitsu ARTH30KHTA is the mid-range model in Fujitsu's highly regarded High Static Single Phase R32 ducted range — the go-to choice for larger Australian homes and light commercial spaces requiring reliable, energy-efficient whole-home climate control. This complete system includes the indoor unit, outdoor condenser and UTY-RNRT backlit touch panel wall controller, ready to install.

Up to 19.7% more energy efficient than previous Fujitsu ducted models, with a compact lightweight indoor chassis designed for easier handling and installation in roof spaces. VEU registered.

Cooling & Heating Performance The ARTH30KHTA delivers 8.5kW rated cooling (2.8–13.0kW variable) and 10.0kW rated heating (2.7–12.0kW variable). EER 3.62, COP 3.38. High static pressure design with 695 L/s airflow at 210 Pa across three fan speeds — ideal for larger duct networks and multi-zone installations where extra static pressure is needed to push air through longer runs.

Designed for Australian Conditions Maximum guaranteed ambient operating temperature of 50°C in cooling mode — well suited to Melbourne summers and hot Australian climates. Operating range -10°C to 50°C cooling, -15°C to 24°C heating.

Zone System Compatible Zone system compatible out of the box. Connectable distributing duct for flexible branch duct layouts. Fresh air intake capable for improved indoor air quality. Demand response enabled for energy management program compliance.

Includes UTY-RNRT Backlit Wall Controller The UTY-RNRT touch panel controller provides a clear backlit display and intuitive controls for the homeowner. No separate controller purchase required — this is a complete ready-to-install system.

Key Features

  • Auto restart after power failure
  • Auto changeover between heating and cooling modes
  • Economy mode to limit maximum operating current
  • On/Off timer and program timer
  • Blue fin outdoor heat exchanger for coastal corrosion resistance
  • Connectable distributing duct and fresh air duct
  • Filter sign indicator
Specifications
  • Indoor unit: ARTH30KHTA
  • Outdoor unit: AOTH30KBTA
  • Controller: UTY-RNRT (included)
  • Refrigerant: R32
  • Power supply: 220–240V / 1 phase / 50Hz
  • Pipe size: 3/8" liquid x 5/8" gas (flare connection)
  • Pre-charge: 30m
  • Max pipe run: 50m
  • Max height difference: 30m
  • Running current: 10.4A cooling / 14.2A heating
  • Max operating current: 22.6A
  • Indoor dimensions: 1,050W x 500D x 400H mm, 39kg
  • Outdoor dimensions: 940W x 788H x 320D mm, 52kg
  • Supply air transfer: 850 x 295mm
  • Return air transfer: 865 x 325mm

Warranty 5 year manufacturer warranty. VEU registered.
