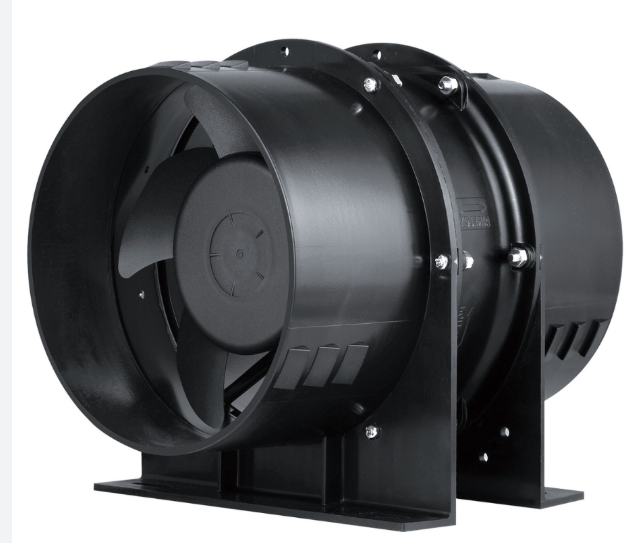

150mm Inline Fan
Description
150mm Inline Fan 90 L/SEC @ FREE AIR
The Alpine Ventilation 150mm Inline Axial Fan is a trade-quality inline exhaust fan designed for residential and commercial ventilation applications. Delivering 330m³/h (92 L/sec) of airflow at free air with a maximum static pressure of 118 Pa, this fan is powerful enough for bathroom exhaust, laundry ventilation, room-to-room air transfer, subfloor ventilation, and roof space exhaust across a wide range of installation scenarios.
The fan features a quality motor with Japanese bearings and copper wiring for long-lasting, reliable performance. Rated to 50,000 hours of continuous run time, the Alpine inline fan is built for durability in demanding residential and commercial ventilation applications. Compliant with 2022 NCC 10.8.2(1) flow rate requirements, it meets current Australian building code standards for mechanical ventilation.
Easy-fit mounting brackets with duct tabs allow for fast, straightforward installation in the duct run, and the fan can be mounted horizontally or vertically to suit the installation. The included DIY plug and lead make connection simple without the need for additional electrical work in most installations. The compact inline design keeps the unit hidden within the duct run — out of sight and out of the room being ventilated.
Key specifications:
- Airflow: 330m³/h (92 L/sec) at free air
- Maximum static pressure: 118 Pa
- Power: 46W
- Input: 240V, 50Hz
- Duct size: 150mm
- IP rating: IP22
- Motor: Japanese bearings, copper winding
- Rated run time: 50,000 hours continuous
- Mounting: horizontal or vertical
- Includes plug and lead
- Includes easy-fit mounting brackets with duct tabs
- Compliant with 2022 NCC 10.8.2(1) flow rate requirements
- Warranty: 3 years
- Brand: Alpine Ventilation
