Actron Air Crv15Bs 15 Kw Advance Split Ducted Outdoor Only Single Phase

SKU:
ACTDO15ADV
Price:
$4,817.00 ex GST
Make an Enquiry

Description

CRV15BS 15 kw Actron Air Ducted Advance Outdoor Single Phase (Excludes Wired Controller)
4.35/14.8/16.5 COOL
4.48/15.00/17.50 HEAT
3/8 - 3/4 pipe size pre charge 15 metres
max pipe run 60 metres ( 40 grams metre )
1365 wide x 530 deep x 1110 high
Circuit Breaker Size 32 amp
**VEU REGISTERED**

Product Details

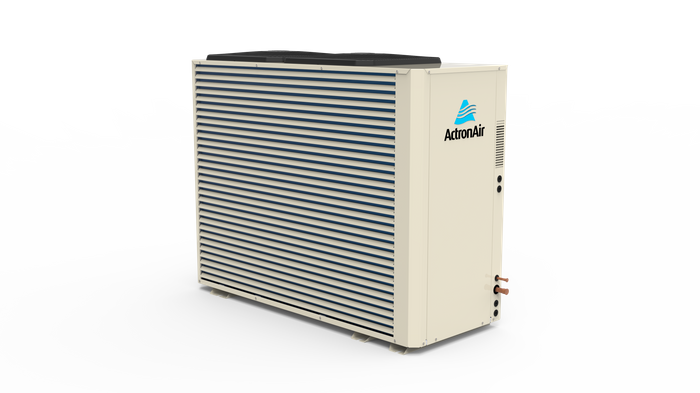

Actron Air CRV15BS 15kW Ducted Reverse Cycle Outdoor Unit – Single Phase

Stay comfortable year-round with the Actron Air CRV15BS 15kW single phase ducted reverse cycle outdoor unit. Engineered for Australian conditions, this powerful outdoor unit is ideal for medium to large homes requiring whole-home climate control through an existing or new ducted system. With wide capacity range, generous pipe run allowance and VEU registration, the CRV15BS offers the performance and flexibility today's installations demand.

Key Features

  • 15kW ducted reverse cycle – powerful heating and cooling for medium to large homes
  • Wide capacity range – cooling from 4.35kW to 16.5kW, heating from 4.48kW to 17.50kW for precise comfort control
  • Single phase power – easy integration with standard residential electrical supply (32A circuit breaker required)
  • Flexible pipe runs – factory pre-charged to 15 metres with a maximum pipe run of 60 metres, suiting a wide range of installation layouts
  • VEU Registered – eligible under Victoria's Victorian Energy Upgrades program for potential energy efficiency incentives
  • Actron Air Advance Series – trusted Australian brand built for performance and reliability
  • Outdoor unit only – pairs with compatible Actron Air ducted indoor units (wired controller sold separately)
Specifications

Specifications

Model CRV15BS
Brand Actron Air
Type Ducted Reverse Cycle Outdoor Unit
Phase Single Phase
Cooling Capacity (min/rated/max) 4.35 / 14.8 / 16.5 kW
Heating Capacity (min/rated/max) 4.48 / 15.00 / 17.50 kW
Pipe Size (liquid / suction) 3/8" / 3/4"
Pre-charge Length 15 metres
Maximum Pipe Run 60 metres
Additional Refrigerant Charge 40 g/metre
Dimensions (W x D x H) 1365 x 530 x 1110 mm
Circuit Breaker Size 32 Amp
VEU Registered Yes
Controller Not included (sold separately)
