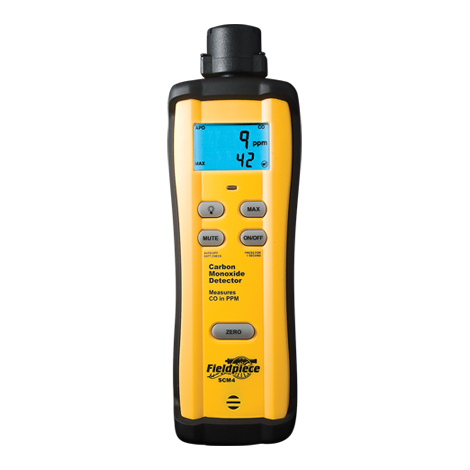

Fieldpiece SCM4 Carbon Monoxide Detection (CO) Meter

SKU:

FPSCM4

Price:

$459.00 ex GST

Make an Enquiry

Description

SCM4 Fieldpiece Carbon Monoxide Meter (CO) with Smart Sensor [ Part # RCM4 ]. reads in PPM. 0-1000 PPM NOTE: We do not warrant Sensors due to nature of use.

Product Details

Carbon monoxide is odourless, colourless and kills without warning. The SCM4 has a very fast reaction time and measures CO in parts per million — its electrochemical sensor is fast enough for walk-around tests, helping you find CO sources like cracked heat exchangers or breached flue stacks.

The walk-around method is straightforward: zero the unit outdoors in fresh air, then enter the building and watch the display in real time. By constantly moving towards the area of higher concentration, you can pinpoint the source of the CO. The bright-blue backlit dual display shows both MAX and real-time measurements simultaneously — so you can see the peak reading and current reading at the same time without toggling between modes. Audio and visual alarms with mute alert you when CO levels reach dangerous thresholds, and the magnetic hanger keeps your hands free while monitoring. When the sensor reaches end of life — approximately two years under normal use — the RCM4 replacement sensor plugs straight in and auto-calibrates to factory standards without sending the unit away.

Key features:

Electrochemical CO sensor — fast response, specific to CO
Measurement range: 0–1,000 ppm (0–2,000 ppm for exposures under 5 minutes)
Field-replaceable sensor — RCM4 replacement available separately
Sensor comes factory pre-calibrated
ZERO button — calibrates to ambient quickly
Backlit dual display — MAX and real-time readings simultaneously
Audio and visual alarms with mute
Magnetic hanger — hands-free operation
Auto power-off
Sensor life: approximately 2 years
Long term drift: less than 5% per year
Battery: 9V alkaline
Operating temperature: 0°C to 50°C
Accuracy: ±5% reading ±1ppm (0–15ppm); ±5% reading ±2ppm (16–35ppm); ±5% reading ±5ppm (36–1,000ppm)
