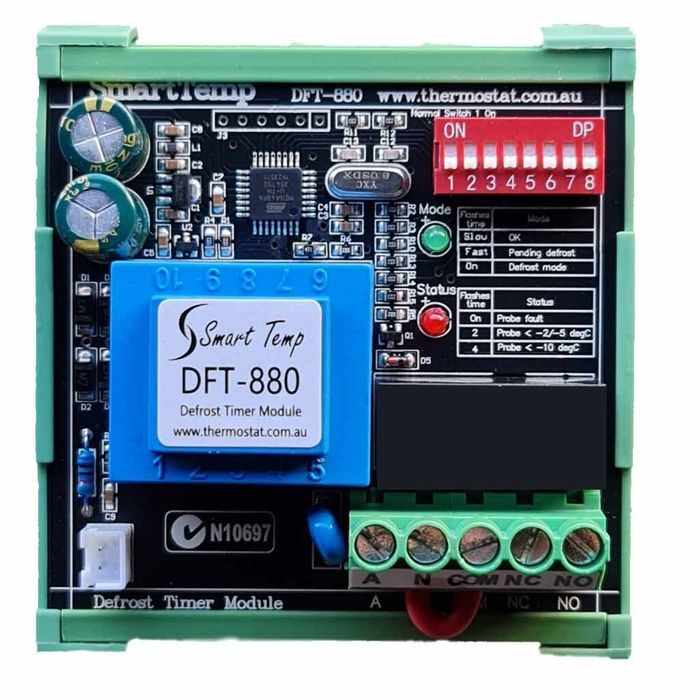

Dft-880 Defrost Module
Description
DFT-880 Defrost Module
Power Supply 240VAC +/- 5% @ 50Hz
Relay Rating 10A @240VAC (max)
Size 75 x 75 x 50mm
LEDS Green – (De-Ice indication)
Red – (Errors & Coil Temp)
Defrost Initiation – 2c or – 5c selectable
Defrost Confirmation Automatic on coil temp
Defrost Termination +10c or +15c
5min, 10min, 15min or 20min
Sensor Type 10K NTC Type II
Sensor Length 1.8 Meters typically
Range -30c ~ 50c
Storage conditions -20 + 70c <95% non condensing
Operational Cond. -15 + 60 < 95% non condensing
Smart Temp DFT-880 Defrost Module
Ensure reliable, efficient defrost control for your refrigeration system with the Smart Temp DFT-880 Defrost Module. Featuring flexible defrost initiation and termination settings, LED status indicators and a compact design, the DFT-880 is a versatile and dependable defrost control solution for a wide range of refrigeration and air conditioning applications. Simple to install and configure, this quality defrost module is a trusted choice for refrigeration and HVAC technicians across Australia.
Key Features
- Flexible defrost initiation – selectable initiation temperature of -2°C or -5°C to suit a variety of system requirements
- Automatic defrost confirmation – automatically confirms defrost based on coil temperature for precise, reliable operation
- Selectable defrost termination – termination at +10°C or +15°C with timer options of 5, 10, 15 or 20 minutes
- LED status indicators – green LED for de-ice indication and red LED for error and coil temperature alerts for easy on-site diagnostics
- 10K NTC Type II sensor – accurate, reliable temperature sensing across a wide operating range
- Compact design – space-saving 75 x 75 x 50mm form factor for easy installation in tight spaces
- Wide operating range – suitable for use in temperatures from -15°C to +60°C for reliable performance in demanding refrigeration environments
- Smart Temp quality – trusted by refrigeration and HVAC trade professionals across Australia
Specifications
| Model | DFT-880 |
| Brand | Smart Temp |
| Type | Defrost Module |
| Power Supply | 240VAC ±5% @ 50Hz |
| Relay Rating | 10A @ 240VAC (max) |
| Dimensions | 75 x 75 x 50mm |
| LED Indicators | Green (De-Ice) / Red (Errors & Coil Temp) |
| Defrost Initiation | -2°C or -5°C (selectable) |
| Defrost Confirmation | Automatic (coil temperature) |
| Defrost Termination | +10°C or +15°C (selectable) |
| Defrost Timer | 5, 10, 15 or 20 minutes (selectable) |
| Sensor Type | 10K NTC Type II |
| Sensor Length | 1.8 metres (typical) |
| Sensor Range | -30°C to +50°C |
| Storage Conditions | -20°C to +70°C, <95% non-condensing |
| Operational Conditions | -15°C to +60°C, <95% non-condensing |
