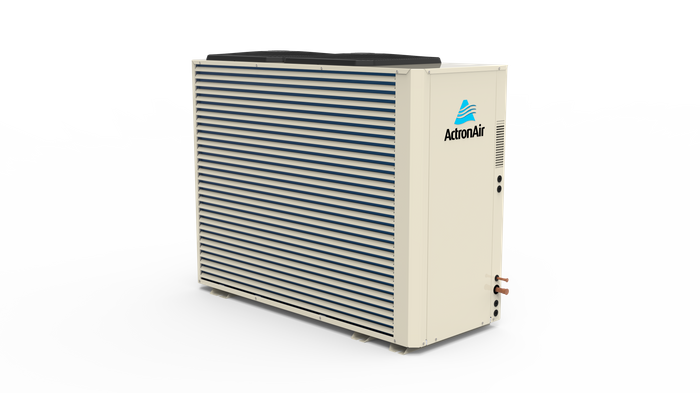

Actron Air Crv13Bs 13 Kw Advance Split Ducted Outdoor Only Single Phase

SKU:
ACTDO13ADV
Price:
$4,689.00 ex GST
Make an Enquiry

Description

CRV13BS 13 kw Actron Air Ducted Advance Outdoor Single Phase (Excludes Wired Controller)
4.1/13.0/14.5 COOL
3.8/12.85/15.0 HEAT
3/8 - 3/4 pipe size pre charge 15 metres
max pipe run 60 metres ( 40 grams metre )
1365 wide x 530 deep x 1110 high
Circuit Breaker Size 32 amp
**VEU REGISTERED**

Product Details

Actron Air CRV13BS 13kW Ducted Reverse Cycle Outdoor Unit – Single Phase

Stay comfortable year-round with the Actron Air CRV13BS 13kW single phase ducted reverse cycle outdoor unit. Engineered for Australian conditions, this capable outdoor unit is ideal for medium-sized homes requiring whole-home climate control through an existing or new ducted system. With wide capacity range, generous pipe run allowance and VEU registration, the CRV13BS delivers the performance and flexibility today's installations demand.

Key Features

  • 13kW ducted reverse cycle – powerful heating and cooling for medium-sized homes
  • Wide capacity range – cooling from 4.1kW to 14.5kW, heating from 3.8kW to 15.0kW for precise comfort control
  • Single phase power – easy integration with standard residential electrical supply (32A circuit breaker required)
  • Flexible pipe runs – factory pre-charged to 15 metres with a maximum pipe run of 60 metres, suiting a wide range of installation layouts
  • VEU Registered – eligible under Victoria's Victorian Energy Upgrades program for potential energy efficiency incentives
  • Actron Air Advance Series – trusted Australian brand built for performance and reliability
  • Outdoor unit only – pairs with compatible Actron Air ducted indoor units (wired controller sold separately)
Specifications

Specifications

Model CRV13BS
Brand Actron Air
Type Ducted Reverse Cycle Outdoor Unit
Phase Single Phase
Cooling Capacity (min/rated/max) 4.1 / 13.0 / 14.5 kW
Heating Capacity (min/rated/max) 3.8 / 12.85 / 15.0 kW
Pipe Size (liquid / suction) 3/8" / 3/4"
Pre-charge Length 15 metres
Maximum Pipe Run 60 metres
Additional Refrigerant Charge 40 g/metre
Dimensions (W x D x H) 1365 x 530 x 1110 mm
Circuit Breaker Size 32 Amp
VEU Registered Yes
Controller Not included (sold separately)
