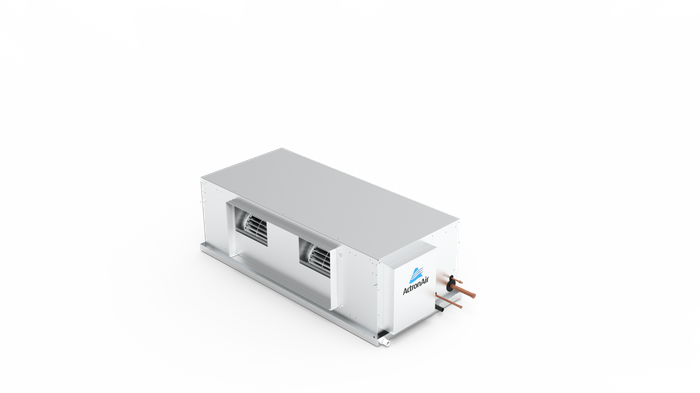

Actron Air Evv17Bs 17 Kw Advance Split Ducted Indoor Only

SKU:
ACTDI17ADV
Price:
$2,205.00 ex GST
Make an Enquiry

Description

EVV17BS 17 kw Actron Air Advance Ducted Indoor - Includes 8 Zone Integrated & 20m CAT5E Cable - Yellow
4.65/17.0/18.5 COOL ( no controller )
5.3/17.2/19.2 HEAT
3/8 - 3/4 pipe size pre charge 15 metres
max pipe run 60 metres ( 40 grams metre )
300 l/sec - 890 l/sec - 1060 l/sec
S/air 715 x 300 opening
R/air 1140 x 360 opening
1420 w x 680 d x 435 h
**VEU REGISTERED**

Product Details

Actron Air EVV17BS 17kW Ducted Advance Indoor Unit – Includes 8 Zone Integrated & 20m CAT5E Cable

Take control of your home's comfort with the Actron Air EVV17BS 17kW ducted reverse cycle indoor unit. Designed to pair with compatible Actron Air outdoor units, this advanced indoor unit comes with an integrated 8 zone controller and 20 metres of CAT5E cable included, making it a complete and convenient solution for whole-home zoned climate control. VEU registered and engineered for Australian conditions, the EVV17BS is the smart choice for large home ducted installations where high capacity and superior airflow performance are essential.

Key Features

  • 17kW ducted reverse cycle indoor unit – high-capacity heating and cooling for large homes
  • 8 zone integrated controller included – manage up to 8 independent zones straight out of the box
  • 20m CAT5E cable included – everything needed for a clean, connected installation
  • Wide capacity range – cooling from 4.65kW to 18.5kW, heating from 5.3kW to 19.2kW for precise comfort control
  • High airflow performance – airflow range from 300 L/s up to 1060 L/s to suit demanding system requirements
  • Flexible pipe runs – factory pre-charged to 15 metres with a maximum pipe run of 60 metres
  • VEU Registered – eligible under Victoria's Victorian Energy Upgrades program for potential energy efficiency incentives
  • Actron Air Advance Series – trusted Australian brand built for performance and reliability
Specifications

Specifications

Model EVV17BS
Brand Actron Air
Type Ducted Reverse Cycle Indoor Unit
Cooling Capacity (min/rated/max) 4.65 / 17.0 / 18.5 kW
Heating Capacity (min/rated/max) 5.3 / 17.2 / 19.2 kW
Airflow (min/rated/max) 300 / 890 / 1060 L/s
Pipe Size (liquid / suction) 3/8" / 3/4"
Pre-charge Length 15 metres
Maximum Pipe Run 60 metres
Additional Refrigerant Charge 40 g/metre
Supply Air Opening 715 x 300 mm
Return Air Opening 1140 x 360 mm
Dimensions (W x D x H) 1420 x 680 x 435 mm
Zone Controller 8 Zone Integrated (included)
CAT5E Cable 20 metres (included)
VEU Registered Yes
Controller Not included (sold separately)
