Actron Air Evv13Bs 13 Kw Advance Split Ducted Indoor Only

SKU:
ACTDI13ADV
Price:
$1,554.00 ex GST
Make an Enquiry

Description

EVV13BS 13 kw Actron Air Advance Ducted Indoor - Includes 8 Zone Integrated & 20m CAT5E Cable - Yellow
4.1/13.0/14.5 COOL ( no controller )
3.8/12.85/15.0 HEAT
3/8 - 3/4 pipe size pre charge 15 metres
max pipe run 60 metres ( 40 grams metre )
230 l/sec - 650 l/sec - 780 l/sec
S/air 715 x 300 opening
R/air 900 x 340 opening
1090 w x 615 d x 412 h
**VEU REGISTERED**

Product Details

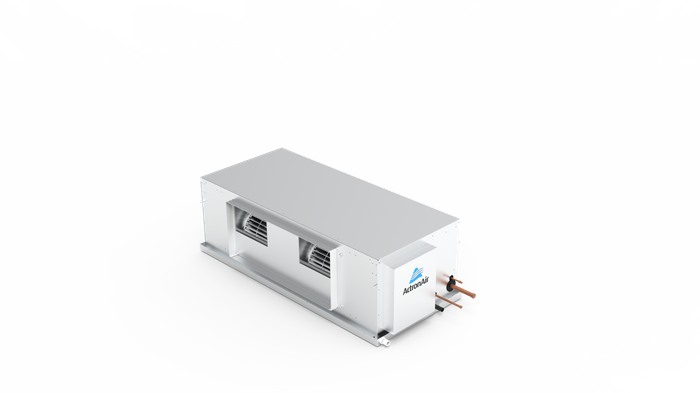

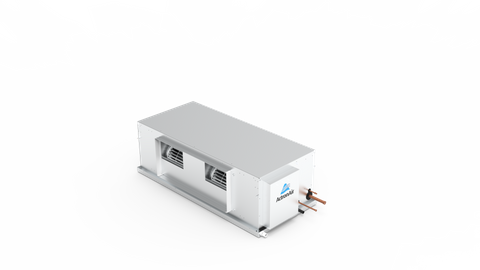

Actron Air EVV13BS 13kW Ducted Advance Indoor Unit – Includes 8 Zone Integrated & 20m CAT5E Cable

Take control of your home's comfort with the Actron Air EVV13BS 13kW single phase ducted reverse cycle indoor unit. Designed to pair with compatible Actron Air outdoor units, this advanced indoor unit comes with an integrated 8 zone controller and 20 metres of CAT5E cable included, making it a complete and convenient solution for whole-home zoned climate control. VEU registered and engineered for Australian conditions, the EVV13BS is the smart choice for medium-sized home ducted installations.

Key Features

  • 13kW ducted reverse cycle indoor unit – powerful heating and cooling for medium-sized homes
  • 8 zone integrated controller included – manage up to 8 independent zones straight out of the box
  • 20m CAT5E cable included – everything needed for a clean, connected installation
  • Wide capacity range – cooling from 4.1kW to 14.5kW, heating from 3.8kW to 15.0kW for precise comfort control
  • High airflow performance – airflow range from 230 L/s up to 780 L/s to suit varying system demands
  • Flexible pipe runs – factory pre-charged to 15 metres with a maximum pipe run of 60 metres
  • VEU Registered – eligible under Victoria's Victorian Energy Upgrades program for potential energy efficiency incentives
  • Actron Air Advance Series – trusted Australian brand built for performance and reliability
Specifications

Specifications

Model EVV13BS
Brand Actron Air
Type Ducted Reverse Cycle Indoor Unit
Cooling Capacity (min/rated/max) 4.1 / 13.0 / 14.5 kW
Heating Capacity (min/rated/max) 3.8 / 12.85 / 15.0 kW
Airflow (min/rated/max) 230 / 650 / 780 L/s
Pipe Size (liquid / suction) 3/8" / 3/4"
Pre-charge Length 15 metres
Maximum Pipe Run 60 metres
Additional Refrigerant Charge 40 g/metre
Supply Air Opening 715 x 300 mm
Return Air Opening 900 x 340 mm
Dimensions (W x D x H) 1090 x 615 x 412 mm
Zone Controller 8 Zone Integrated (included)
CAT5E Cable 20 metres (included)
VEU Registered Yes
Controller Not included (sold separately)
