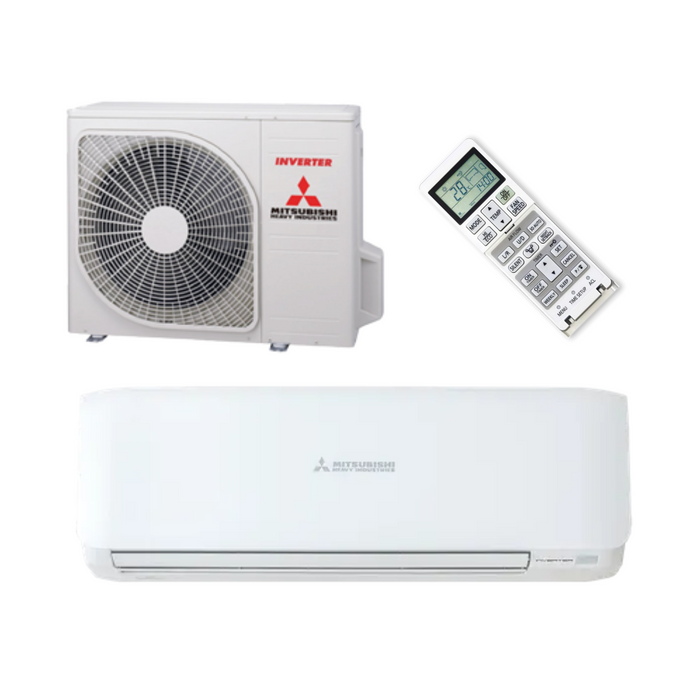

Mitsubishi Heavy Industries Bronte Series Dxk24Zra-Wf1 / Dxc24Zra-W Split System Set

SKU:
DXK24ZRA-WF1-SET MITSUBISHI
Price:
$2,128.00 ex GST
Make an Enquiry

Description

DXK24ZRA-WF1 / DXC24ZRA-W * R32* Mitsubish Heavy Hi Wall Inverter complete. Bronte Series ( INC FREE WIFI )
7.1 kw cool / 8.0 kw heat (2.3kw-8.3kw cool) (2.0kw-10.9kw heat)
1/4 - 5/8 pipe size - Pre Charged 15 Metres Max Pipe Run 30 Metres
1197w x 339h x 262d indoor - 750 high x 880 wide x 340 deep outdoor
585mm bolt centres MAX CURRENT 17 AMPS (25 grams add per metre) IND 19.5 KGS / OUT 64 KGS
***VEU REGISTERED***

Product Details

Mitsubishi Heavy Industries DXK24ZRA-WF1 7.1kW Bronte Series Reverse Cycle Split System – R32 with Wi-Fi

Experience premium, high capacity climate control with the Mitsubishi Heavy Industries DXK24ZRA-WF1 7.1kW Bronte Series reverse cycle split system. Powered by R32 refrigerant and featuring built-in Wi-Fi connectivity, this high wall inverter unit delivers powerful, energy efficient heating and cooling for large rooms, open plan living and entertaining areas that demand serious output. VEU registered and backed by Mitsubishi Heavy Industries' renowned Japanese engineering, the Bronte Series combines high capacity performance with smart connectivity for the ultimate in home comfort.

Key Features

  • 7.1kW cooling / 8.0kW heating – powerful output for large rooms and open plan living and entertaining areas
  • Wide capacity range – cooling from 2.3kW to 8.3kW, heating from 2.0kW to 10.9kW for precise comfort control
  • Built-in Wi-Fi included – control your system from anywhere via your smartphone or tablet
  • R32 refrigerant – lower global warming potential for a more environmentally responsible installation
  • Inverter technology – precise temperature control with superior energy efficiency
  • Complete set – includes matched indoor (DXK24ZRA-WF1) and outdoor (DXC24ZRA-W) units
  • Pre-charged pipework – factory pre-charged to 15 metres for straightforward installation
  • Extended pipe runs – maximum pipe run of 30 metres (additional charge 25g/metre)
  • VEU Registered – eligible under Victoria's Victorian Energy Upgrades program for potential energy efficiency incentives
  • Mitsubishi Heavy Industries Bronte Series – trusted Japanese engineering built for high capacity performance
Specifications

Specifications

Model (Indoor) DXK24ZRA-WF1
Model (Outdoor) DXC24ZRA-W
Brand Mitsubishi Heavy Industries
Series Bronte
Type High Wall Reverse Cycle Split System
Refrigerant R32
Cooling Capacity (min/rated/max) 2.3 / 7.1 / 8.3 kW
Heating Capacity (min/rated/max) 2.0 / 8.0 / 10.9 kW
Inverter Yes
Wi-Fi Yes (built-in, included free)
Pipe Size (liquid / suction) 1/4" / 5/8"
Pre-charge Length 15 metres
Maximum Pipe Run 30 metres
Additional Refrigerant Charge 25 g/metre
Max Current 17 Amps
Bolt Centres (Outdoor) 585mm
Indoor Unit Dimensions (W x H x D) 1197 x 339 x 262 mm
Outdoor Unit Dimensions (H x W x D) 750 x 880 x 340 mm
Indoor Unit Weight 19.5 kg
Outdoor Unit Weight 64.0 kg
VEU Registered Yes
