Arth36Khta / Aoth36Kbta 10.0 Kw Fujitsu Ducted Complete Inc Uty-Rnrt Controller R32

SKU:
FUJDSTD10
Price:
$3,385.00 ex GST
Make an Enquiry

Description

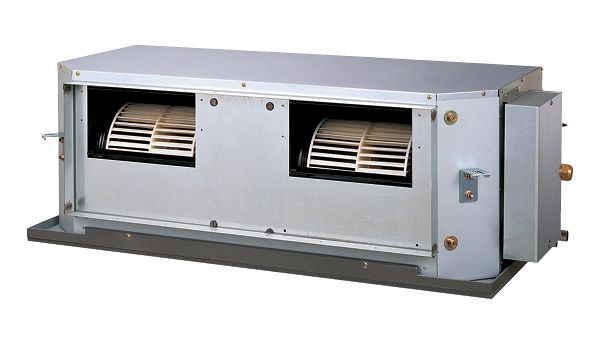

ARTH36KHTA / AOTH36KBTA 10.0 KW
FUJITSU DUCTED COMPLETE INC UTY-RNRT CONTROLLER R32
1 PHASE HI STATIC STANDARD
10.0 KW COOL / 11.2 KW HEAT
695 L/SEC @ 210 PASC
3/8 - 5/8 PIPE SIZE
850 x 295 s/air trans
865 x 325 r/air trans
Pre Charged 30 metres / max 50 metre
indoor 1050 w x 500 d x 400 h 39 KGS
outdoor 940w x 788h x 320d 52 KGS
* RUNNING CURRENT 13.6 AMPS*
Flare Connection
**VEU REGISTERED**

Product Details

The Fujitsu ARTH36KHTA is a popular choice for larger Australian homes — delivering serious capacity with the energy efficiency and reliability that Fujitsu's High Static R32 range is known for. Suited to homes with multiple zones, longer duct runs or larger open-plan areas, this complete system includes the indoor unit, outdoor condenser and UTY-RNRT backlit touch panel wall controller ready to install.

Up to 19.7% more energy efficient than previous Fujitsu ducted models. Compact lightweight indoor chassis for easier roof space installation. VEU registered.

Cooling & Heating Performance The ARTH36KHTA delivers 10.0kW rated cooling (2.8–11.4kW variable) and 11.2kW rated heating (2.7–14.0kW variable). EER 3.25, COP 4.00. High static pressure design with 695 L/s airflow at 210 Pa — the same high-airflow indoor chassis as the 8.5kW model, now paired with a larger capacity outdoor unit for bigger spaces.

Designed for Australian Conditions Maximum guaranteed ambient operating temperature of 50°C in cooling mode. Operating range -10°C to 50°C cooling, -15°C to 24°C heating — well suited to Melbourne's variable climate and hot summer peaks.

Zone System Compatible Zone system compatible out of the box. Supports multiple independent zones for room-by-room temperature control. Connectable distributing duct for flexible branch duct layouts. Fresh air intake capable for improved indoor air quality. Demand response enabled for energy management program compliance.

Includes UTY-RNRT Backlit Wall Controller The UTY-RNRT touch panel controller provides a clear backlit display and simple operation. No separate controller purchase required — complete ready-to-install system.

Key Features

  • Auto restart after power failure
  • Auto changeover between heating and cooling modes
  • Economy mode to limit maximum operating current
  • On/Off timer, program timer and 7-day weekly timer
  • Blue fin outdoor heat exchanger for coastal corrosion resistance
  • Connectable distributing duct and fresh air duct
  • Filter sign indicator
Specifications
  • Indoor unit: ARTH36KHTA
  • Outdoor unit: AOTH36KBTA
  • Controller: UTY-RNRT (included)
  • Refrigerant: R32
  • Power supply: 230V / 1 phase / 50Hz
  • Pipe size: 3/8" liquid x 5/8" gas (flare connection)
  • Pre-charge: 30m
  • Max pipe run: 50m
  • Running current: 13.6A
  • Indoor dimensions: 1,050W x 500D x 400H mm, 39kg
  • Outdoor dimensions: 940W x 788H x 320D mm, 52kg
  • Supply air transfer: 850 x 295mm
  • Return air transfer: 865 x 325mm

Warranty 5 year manufacturer warranty. VEU registered.
