Haier Smart Power 20.0kW High ESP Ducted System R410a ADH200H1ERK-SET (51677
Description
ADH200H1ERK-SET (51677) Haier
{Smart Power 20.0kW High ESP Ducted System R410a} no controller
Haier High ESP Ducted R410a — 20kW Set (ADH200H1ERK-SET)
The Haier ADH200H1ERK-SET is a high static pressure ducted air conditioning system delivering 20kW cooling and 22.8kW heating — purpose-built for large homes, commercial spaces and demanding installations where standard ducted systems fall short.
Running on R410a refrigerant with an inverter twin rotary compressor and DC fan motor, this system offers precise airflow and static pressure adjustment to suit complex duct layouts. The indoor unit fits within standard Australian truss spacings of 600mm, and Blue Fin coil protection ensures long-term durability in coastal and challenging environments.
Compatible with the optional SmartZone controller for up to eight individually controllable zones, and Wi-Fi ready for remote control via the SmartHQ app with Google Home and Amazon Alexa voice control support.
Key specifications: cooling 20kW / heating 22.8kW, single phase 380-415V power supply, maximum pipe run 75m, airflow 1200/1050/950/850 L/s, indoor unit (ADH200H1ERG) 1330 x 500 x 895mm, outdoor unit (1UH200W1ERK) 1050 x 1636 x 413mm. Includes YR-E17 wired controller. 5-year parts and labour warranty.
Specifications — Haier ADH200H1ERK-SET High ESP Ducted R410a 200
| Cooling capacity | 20kW |
| Heating capacity | 22.8kW |
| EER | 3.23 |
| COP | 3.68 |
| Refrigerant | R410a |
| Compressor type | Inverter twin rotary |
| Motor type | DC motor |
| Airflow | 1200 / 1050 / 950 / 850 L/s |
| Outdoor sound power (SWL) | 75dBA |
| Outdoor sound pressure (SPL) | 58dBA |
| Working temp — cooling | -10°C to +46°C |
| Working temp — heating | -20°C to +24°C |
| Power supply | 380-415V / Single phase / 50Hz |
| Minimum circuit amps | 20MCA |
| Pipe size — gas | 19.05mm |
| Pipe size — liquid | 12.7mm |
| Maximum pipe length | 75m |
| Indoor unit model | ADH200H1ERG |

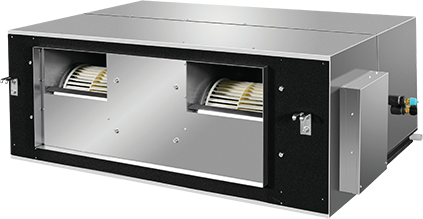

| Indoor unit dimensions (W x H x D) | 1330 x 500 x 895mm |
| Indoor unit weight | 96kg |
| Outdoor unit model | 1UH200W1ERK |
| Outdoor unit dimensions (W x H x D) | 1050 x 1636 x 413mm |
| Outdoor unit weight | 160kg |
| Included controller | YR-E17 wired controller |
| Wi-Fi compatible | Yes (optional accessory) |
| Voice control | Google Home / Amazon Alexa |
| Auto restart | Yes |
| Sleep mode | Yes |
| Self diagnostics | Yes |
| 24-hour timer | Yes |
| Blue Fin coils | Yes |
| Cyber security updates until | 31/01/2028 |
| Warranty | 5 years parts and labour |
