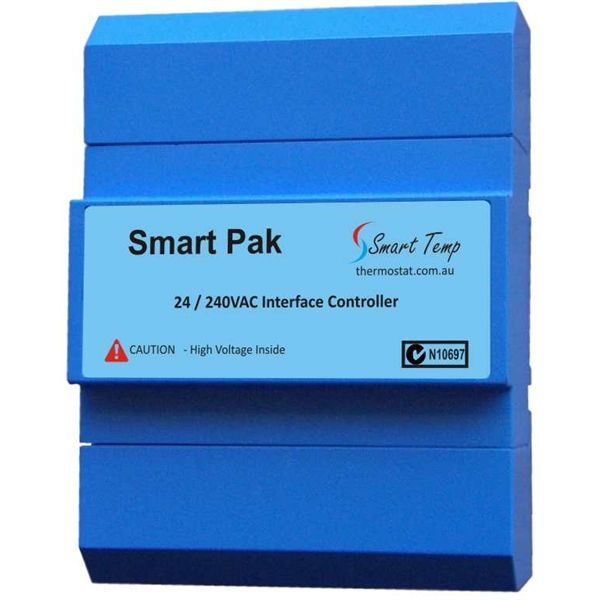

SMARTPAK6 + 240 - 24V INTERFACE MODULE
SKU:
SP6
Price:
$177.10 ex GST
Description
SmartPak 6+ 240 - 24V Interface
Smart Temp
SP-6+ 6 Relay Smartpak
interface module with Safety
Interlock relay and fault input
The SmartPak6+ has been designed for situations where a 24V thermostat or other low-voltage device needs to switch equipment with 240V control circuitry, or where there is insufficient wiring between the wall controller and the SmartPak itself.
Key Features
- 6 relays rated at 240V / 10A each
- Main 5 relays fully fused for added protection
- 6th (aux) relay provides changeover contacts for added wiring flexibility
- Fault input — isolates the first 5 relays in the event of a fault condition
- Built-in Magic Wire and SPSM interface ready (optional SPSM sender module required)
- LED indication for power, fault, and all 6 relay input statuses
- Secure DIN rail mounting with protective covers on all terminals
Optional Add-On
Pair it with the SPSM Sender Module to unlock 2-to-7 wire conversion — perfect for retrofit and upgrade jobs where existing cabling is limited.
