Haier Quartz Plus As35Qcfhra-Set 3.5Kw Wall Mounted Split System

SKU:
HAIHW35QUARTZ
Price:
$772.00 ex GST
Make an Enquiry

Description

AS35QCFHRA-SET (51777) HAIER
{Quartz Plus 3.5kW Wall Mounted Split System R/C} 3.5 kw cool / 3.7 kw heat.
1/4-3/8 pipe size pre charge 7 metre
Max pipe run 15 metres.
Indoor: 875 wide X 307 high X 217 deep Outdoor: 553 high x 800 wide x 275 deep r
MAX CURRENT 10 AMPS IND 10.0 KGS / OUT 30 KGS
***VEU REGISTERED***

Product Details

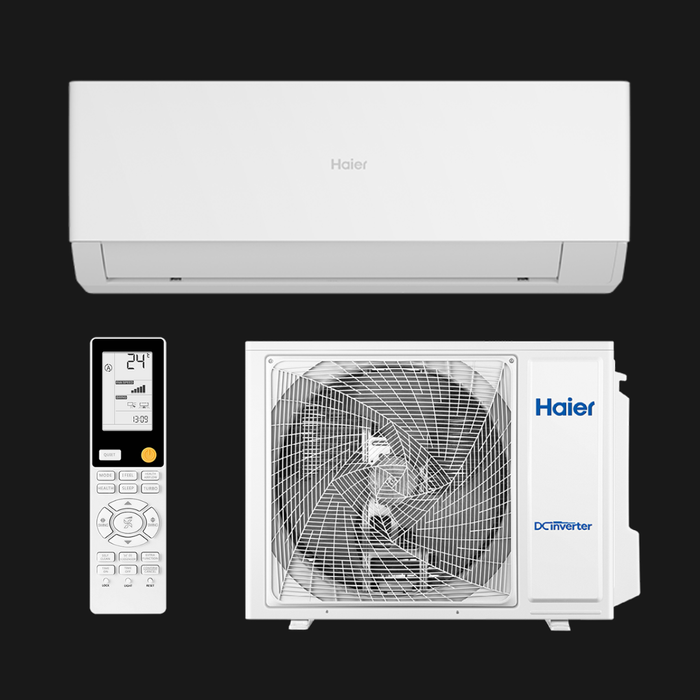

Haier Quartz Plus AS35QCFHRA-SET — 3.5kW Wall Mounted Split System

The Haier Quartz Plus is a premium mid-range wall-mounted split system combining powerful performance with advanced air purification and smart home connectivity. Sitting above the standard Quartz in Haier's residential range, the Quartz Plus adds UV Protect sterilisation and enhanced Coanda Plus 3D airflow technology — making it a strong all-round choice for bedrooms, living areas and medium-sized spaces where air quality matters as much as comfort.

VEU registered — eligible for Victorian Energy Upgrades rebates.

Key Features

  • 3.5kW cooling / 3.7kW heating — reverse cycle performance suited to bedrooms, studies and medium-sized living areas
  • UV Protect sterilisation — built-in LED UV lights in Health mode kill airborne H3N2 virus and Staphylococcus aureus bacteria at above 91% effectiveness under test conditions
  • Self-cleaning function — flushes dirt from the evaporator coil and reduces mould and bacteria growth; also cleans the outdoor coil to clear salt and debris that can lead to corrosion
  • Coanda Plus 3D Airflow — aerodynamic louvre design directs air both horizontally and vertically for even temperature distribution throughout the room
  • Built-in Wi-Fi — SmartHQ app — full remote control from anywhere via smartphone, compatible with Google Home and Amazon Alexa voice control
  • Turbo mode — boosts motor and fan to higher frequency for rapid room temperature recovery
  • Sleep mode — automatically adjusts temperature throughout the night for uninterrupted comfort
  • DC inverter with R32 refrigerant — energy-efficient variable speed operation with lower GWP refrigerant
  • Whisper quiet — as low as 21 dB(A) on the lowest fan speed setting
  • Easy installation — simple positioning specifications with accessible control board and motor for fast servicing
  • VEU registered — eligible for Victorian Energy Upgrades rebates
  • 5-year parts and labour warranty

Suitable For

Bedrooms, studies, home offices, medium-sized living areas and any single-room application where premium air quality features and smart home integration are required alongside reliable reverse cycle performance.

Trade note: Pre-charged for 7 metres of pipework. Maximum pipe run is 15 metres. Liquid line is 6.35mm (1/4") and gas line is 9.52mm (3/8"). VEU registered — confirm current VEEC value with 1st Energy Rebates on 03 9811 7043 before quoting.

Specifications

Specifications

Model AS35QCFHRA-SET
Indoor Unit AS35QCFHRA
Outdoor Unit 1U35MAFFRA
Cooling Capacity 3.5 kW
Heating Capacity 3.7 kW
Airflow 210 L/s
Indoor Noise SPL 40–21 dB(A)
Outdoor Noise SPL 52 dB(A)
Outdoor Sound Power SWL 63 dB(A)
Indoor Unit Dimensions W x H x D 875 x 307 x 217mm
Indoor Unit Weight 10 kg
Outdoor Unit Dimensions W x H x D 800 x 553 x 275mm
Outdoor Unit Weight 30 kg
Liquid Line 6.35mm (1/4")
Gas Line 9.52mm (3/8")
Pre-charge 7 metres
Maximum Pipe Run 15 metres
Max Current 10 A
Power Supply 220–240V single phase 50Hz
Working Temp — Cooling -10°C to +46°C
Working Temp — Heating -15°C to +24°C
Refrigerant R32
VEU Registered Yes
Warranty 5 years parts and labour
SKU 51777
