Actron Air Crv17Bs 17 Kw Advance Split Ducted Outdoor Only Single Phase

SKU:
ACTDO17ADV
Price:
$5,285.00 ex GST
Make an Enquiry

Description

CRV17BS 17 kw Actron Air Ducted Advance Outdoor Single Phase (Excludes Wired Controller)
4.65/17.0/18.5 COOL
5.3/17.2/19.2 HEAT
3/8 - 3/4 pipe size pre charge 15 metres
max pipe run 60 metres ( 40 grams metre )
1365 wide x 530 deep x 1110 high
Circuit Breaker Size 40 amp
**VEU REGISTERED**

Product Details

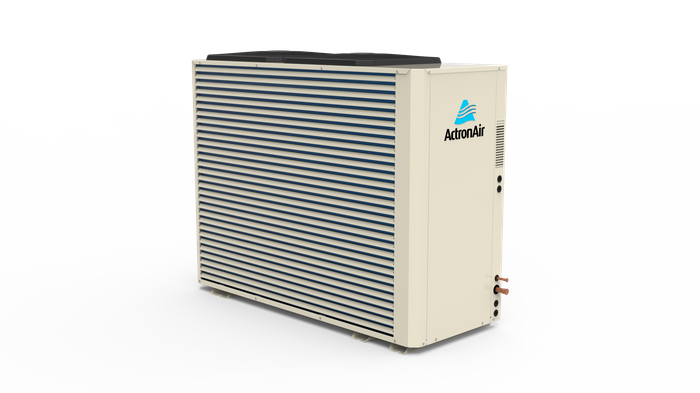

Actron Air CRV17BS 17kW Ducted Reverse Cycle Outdoor Unit – Single Phase

Stay comfortable year-round with the Actron Air CRV17BS 17kW single phase ducted reverse cycle outdoor unit. Engineered for Australian conditions, this high-capacity outdoor unit is ideal for large homes requiring powerful whole-home climate control through an existing or new ducted system. With wide capacity range, generous pipe run allowance and VEU registration, the CRV17BS delivers the performance and flexibility today's installations demand.

Key Features

  • 17kW ducted reverse cycle – high-capacity heating and cooling for large homes
  • Wide capacity range – cooling from 4.65kW to 18.5kW, heating from 5.3kW to 19.2kW for precise comfort control
  • Single phase power – easy integration with standard residential electrical supply (40A circuit breaker required)
  • Flexible pipe runs – factory pre-charged to 15 metres with a maximum pipe run of 60 metres, suiting a wide range of installation layouts
  • VEU Registered – eligible under Victoria's Victorian Energy Upgrades program for potential energy efficiency incentives
  • Actron Air Advance Series – trusted Australian brand built for performance and reliability
  • Outdoor unit only – pairs with compatible Actron Air ducted indoor units (wired controller sold separately)
Specifications

Specifications

Model CRV17BS
Brand Actron Air
Type Ducted Reverse Cycle Outdoor Unit
Phase Single Phase
Cooling Capacity (min/rated/max) 4.65 / 17.0 / 18.5 kW
Heating Capacity (min/rated/max) 5.3 / 17.2 / 19.2 kW
Pipe Size (liquid / suction) 3/8" / 3/4"
Pre-charge Length 15 metres
Maximum Pipe Run 60 metres
Additional Refrigerant Charge 40 g/metre
Dimensions (W x D x H) 1365 x 530 x 1110 mm
Circuit Breaker Size 40 Amp
VEU Registered Yes
Controller Not included (sold separately)
