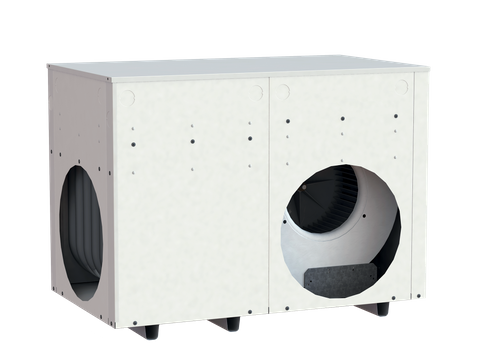

Braemar Ecostar Series Natural Gas Ducted Heater
Features and Benefits
Improved reliability and serviceability
- Simplified & enhanced heat exchanger design
- High efficiency output
- Fully integrated combustion fan
- Streamlined size ranges
- Die-cast flue pan
- More flexibility of installation
- Improved serviceability
Manual controller
The Braemar manual controller is simple and easy to use, controlling heating only, with a large, easy to read digital display.
Zoning and timer functionality not available with this controller.
Optional MagIQtouch controller for complete control of your heating and cooling.
• Touch screen functionality
• Zone your home
• Program mode
• Add Wi-Fi Module
*Manual controller used with 3-star heaters. MagIQtouch Controllers used with 4-star & 5-star heaters
Cat No M492 REV A (0625)
Braemar Ecostar® 3 Star TQR Series
|
Model |
Output (kW) |
Stars |
Gas rate (MJ/h) |
Airflow @ 100Pa (l/s) |
Length (mm) |
Width (mm) |
Height (mm) |
Duct dia (mm) |
Gas type |
|
TQR316N |
16 |
3.7 |
72 |
520 |
820 |
383 |
662 |
300 |
NG |
|
TQR321N |
21 |
3.7 |
90 |
695 |
820 |
383 |
662 |
300 |
NG |
|
TQR328N |
28 |
3.7 |
126 |
770 |
905 |
511 |
662 |
350 |
NG |
|
TQR416N |
16 |
4.7 |
72 |
520 |
820 |
383 |
662 |
300 |
NG |
|
TQR421N |
21 |
4.7 |
90 |
695 |
820 |
383 |
662 |
300 |
NG |
|
TQR428N |
28 |
4.7 |
126 |
770 |
905 |
511 |
662 |
350 |
NG |
|
TQR521N |
21 |
5.2 |
90 |
695 |
820 |
383 |
662 |
300 |
NG |
|
TQR528N |
28 |
5.2 |
126 |
770 |
905 |
511 |
662 |
350 |
NG |
*Based on Australian Gas Association’s results calculated in accordance with the testing methodology in AS/NZS5263.1.6:2016.
| Model | Star Rating* | Output (kW) | Gas Rate (Mj/h) | Airflow (L/sec) | Width (mm) | Length (mm) | Height (mm) | Gas Type |
|---|---|---|---|---|---|---|---|---|
| TQ415 | 4.7 | 14.0 | 60 | 475 | 385 | 770 | 660 | NG |
| TQ420 | 4.7 | 18.0 | 80 | 630 | 385 | 770 | 660 | NG |
| TQ4X20** | 4.7 | 18.0 | 80 | 695 | 385 | 770 | 660 | NG |
| TQ425 | 4.7 | 23.0 | 100 | 755 | 385 | 770 | 660 | NG |
| TQ4X25** | 4.7 | 23.0 | 100 | 810 | 385 | 770 | 660 | NG |
| TQ430 | 4.7 | 28.0 | 122 | 960 | 510 | 880 | 660 | NG |
| TQ4X30** | 4.7 | 28.0 | 122 | 1050 | 510 | 880 | 660 | NG |
| TQ435 | 4.7 | 32.0 | 140 | 1050 | 510 | 880 | 660 | NG |
*Based on Australian Gas Association’s results calculated in accordance with the testing methodology in AS/NZS5263.1.6:2016.
**Extra air models are designed to have Braemar add-on cooling system added.
| Model | Star Rating* | Output (kW) | Gas Rate (Mj/h) | Airflow (L/sec) | Width (mm) | Length (mm) | Height (mm) | Gas Type |
|---|---|---|---|---|---|---|---|---|
| TQM516 | 5.2 | 15.9 | 70 | 475 | 385 | 770 | 660 | NG |
| TQM520 | 5.2 | 20.0 | 88 | 630 | 385 | 770 | 660 | NG |
| TQM5X20** | 5.2 | 20.0 | 88 | 695 | 385 | 770 | 660 | NG |
| TQM5X20U** | 5.2 | 20.0 | 88 | 695 | 385 | 770 | 660 | LPG |
| TQM530 | 5.2 | 27.8 | 122 | 960 | 510 | 880 | 660 | NG |
| TQM5X30** | 5.2 | 27.8 | 122 | 1050 | 510 | 880 | 660 | NG |
| TQM5X30U** | 5.2 | 27.8 | 122 | 1050 | 510 | 880 | 660 | LPG |
*Based on Australian Gas Association’s results calculated in accordance with the testing methodology in AS/NZS5263.1.6:2016.
**Extra air models are designed to have Braemar add-on cooling system added.
