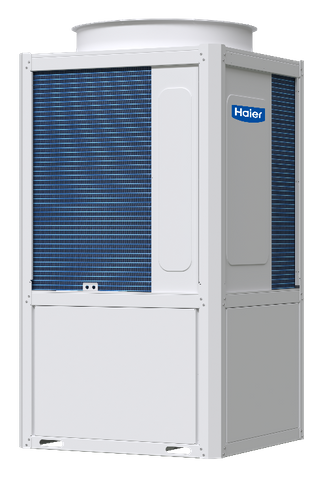

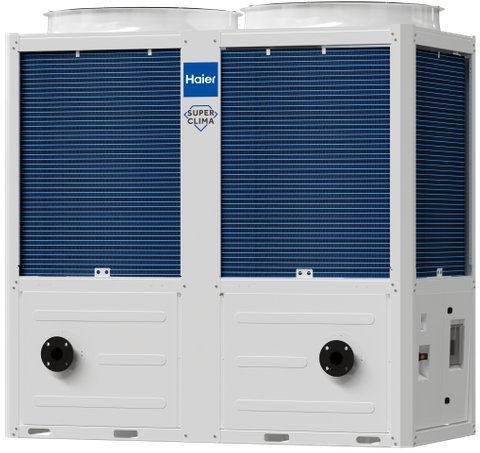

Haier Modular Heat Pump Chiller
The Haier Modular Heat Pump Chiller R32 is a solution for big-building climate control that scales as far as your ambitions. Stack up to 16 modules under a single controller for a combined capacity of 2,080kW, or deploy a single unit straight out of the box — it's as flexible as your project demands. Powered by next-generation R32 refrigerant with just a third of the global warming potential of R410A, and driven by DC inverter scroll compressor technology, it delivers an industry-leading COP of up to 5.0 without compromising on sustainability. Whisper-quiet, built tough, and BMS-ready as standard — this is commercial heating and cooling engineered for the future.
Key Features
-
Three Module Sizes — 70kW, 100kW & 130kW Available in three capacities — 70kW, 100kW, and 130kW — modules can be coupled under a single controller, scaling up to a combined 2,080kW across 16 units.
-
Eco-Friendly R32 Refrigerant Uses next-generation R32 refrigerant, which carries heat efficiently and has only 33% of the global warming potential of R410A — a future-ready choice as environmental regulations tighten.
-
DC Inverter Scroll Compressor Powered by an inverter-driven scroll compressor, and featuring an economiser with a plate heat exchanger for secondary subcooling, delivering superior efficiency across varying load conditions.
-
Low Noise Design Anti-vibration and soundproofing measures around the compressor, combined with optimised fan, air duct, and motor design, keep operational noise to a minimum.
-
BMS Integration & Easy Maintenance All units come with Modbus as standard for BMS connection, and individual modules can be isolated for repair or maintenance without affecting the rest of the system — minimising downtime and operational disruption.
|
Product Data |
|
Unit |
CA0070HANH |
CA0100HANH |
CA0140HANH |
|
Cooling (LWT 7°C/OAT 35°C) |
Capacity |
kW |
65.0 |
100.0 |
130.0 |
|
Power Input |
kW |
22.03 |
28.60 |
42.88 |
|
|
EER |
kW/kW |
2.95 |
3.50 |
3.03 |
|
|
Cooling (LWT 18°C/OAT 35°C) |
Capacity |
kW |
73.0 |
110.0 |
145.0 |
|
Power Input |
kW |
18.96 |
23.40 |
40.28 |
|
|
EER |
kW/kW |
3.85 |
4.70 |
3.60 |
|
|
Heating (LWT 35°C/OAT 7°C) |
Capacity |
kW |
71.0 |
100.0 |
142.0 |
|
Power Input |
kW |
16.14 |
20.00 |
30.87 |
|
|
COP |
kW/kW |
4.40 |
5.00 |
4.60 |
|
|
Heating (LWT 45°C/OAT 7°C) |
Capacity |
kW |
71.0 |
100.0 |
142.0 |
|
Power Input |
kW |
18.93 |
24.20 |
36.90 |
|
|
COP |
kW/kW |
3.75 |
4.13 |
3.85 |
|
|
Heating (LWT 55°C/OAT 7°C) |
Capacity |
kW |
71.0 |
100.0 |
142.0 |
|
Power Input |
kW |
22.90 |
29.10 |
43.50 |
|
|
COP |
kW/kW |
3.10 |
3.44 |
3.26 |
|
|
Operating Temperature Range |
Cooling |
°C |
-20~53 |
||
|
Heating |
°C |
-30~50 |
|||
|
DHW |
°C |
-30~50 |
|||
|
Leaving Water Temperature Range |
Cooling |
°C |
-5~20 |
||
|
Heating |
°C |
20~60 |
|||
|
Storage Temperature Range (Tank) |
DHW |
°C |
20~58 |
||
|
Refrigerant |
Type |
- |
R32 |
R32 |
R32 |
|
GWP |
CO2e/kg |
675 |
675 |
675 |
|
|
Charge |
|
|
|
|
|
|
System A |
kg |
10 |
11 |
11 |
|
|
System B |
kg |
- |
11 |
11 |
|
|
CO2 Eq. |
tCO2e |
6.75 |
14.85 |
14.85 |
|
|
Throttle Method |
- |
Electronic expansion valve |
|||
|
Electrical |
Electrical Control Box IP Class |
- |
IPX4 |
IPX4 |
IPX4 |
|
Power Supply |
Ph/V/Hz |
3N~/380~415/50 |
|||
|
Maximum Running Current |
A |
60 |
100 |
120 |
|
|
Rated Current (Cooling/Heating) |
A |
34.52/29.93 |
46.20/39.70 |
68.23/58.72 |
|
|
Defrost Method |
- |
4WV reverse defrosting |
|||
|
Casing |
Color |
- |
Light grey |
||
|
Material |
- |
Galvanized steel |
|||
|
Compressor |
Brand |
- |
Copeland |
||
|
Type |
- |
Inverter scroll |
|||
|
Quantity |
- |
1 |
2 |
2 |
|
|
Rated Load Amps. (RLA) |
A |
43.1 |
43.1 |
43.1 |
|
|
Crankcase Heater |
W |
90 |
90 |
90 |
|
|
Quantity |
|
1 |
2 |
2 |
|
|
Compressor Oil Brand |
- |
Copeland |
Copeland |
Copeland |
|
|
Compressor Oil Type |
- |
NXG5020 |
NXG5020 |
NXG5020 |
|
|
Compressor Oil Charge (Compressor + Gas-Liquid Separator) |
|||||
|
System A |
ml |
3300 |
3300 |
3300 |
|
|
System B |
ml |
- |
3300 |
3300 |
|
|
Fan Motor |
Brand |
- |
Match-Well |
Match-Well |
Match-Well |
|
IP Class |
- |
IP55 |
IP55 |
IP55 |
|
|
Type |
- |
DC |
DC |
DC |
|
|
Quantity |
- |
1 |
2 |
2 |
|
|
Insulation Class |
- |
F |
F |
F |
|
|
Maximum Rotary Speed |
rpm |
720 |
600 |
720 |
|
|
Fan |
Brand |
- |
Match-Well |
||
|
Type |
- |
Axial |
|||
|
Quantity |
- |
1 |
2 |
2 |
|
|
Fan OD. Diameter |
mm |
Ø1000 |
Ø1000 |
Ø1000 |
|
|
Maximum Airflow Rate |
m3/h |
25400 |
20500 |
25400 |
|
|
Product Data |
|
Unit |
CA0070HANH |
CA0100HANH |
CA0140HANH |
|
Water System |
Water Pressure Drop |
kPa |
53 |
30 |
54 |
|
Maximum Pressure |
MPa |
1 |
1 |
1 |
|
|
Water Pipe Size (Inlet/Outlet) |
- |
DN50/DN50 |
DN65/DN65 |
DN65/DN65 |
|
|
Standard Water Flow Rate (Cooling) |
m3/h |
11.20 |
17.20 |
22.40 |
|
|
Minimum Water Flow Rate (Cooling) |
m3/h |
7.84 |
12.04 |
15.68 |
|
|
Standard Water Flow Rate (Heating) |
m3/h |
12.20 |
17.20 |
24.40 |
|
|
Minimum Water Flow Rate (Heating) |
m3/h |
8.54 |
12.04 |
17.08 |
|
|
Waterside Heat Exchanger |
Type |
- |
Shell-and-tube |
||
|
Number of Shellside Passes |
- |
12 |
11 |
11 |
|
|
Number of Tubeside Passes |
- |
4 |
4 |
4 |
|
|
Airside Heat Exchanger |
Type |
- |
Tube-fin |
||
|
Number of Rows |
- |
3 |
3 |
3 |
|
|
Number of Circuits |
- |
28 |
28 |
28 |
|
|
Tube Pitch |
mm |
21 |
21 |
21 |
|
|
Row Pitch |
mm |
18.186 |
18.186 |
18.186 |
|
|
Fin Spacing |
mm |
1.6 |
1.6 |
1.6 |
|
|
Fin Material |
- |
Aluminum |
|||
|
Fin Coating Type |
- |
Hydrophilic aluminum foil |
|||
|
Salt Spray Test Duration |
hour |
500 |
500 |
500 |
|
|
Tube OD. Diameter |
mm |
7 |
7 |
7 |
|
|
Tube Type |
- |
Inner grooved |
|||
|
Plate Heat Exchanger |
Brand |
- |
Weyee |
||
|
Electronic ExpansionValve |
Brand |
- |
Sanhua |
||
|
Four Way Valve |
Brand |
- |
Sanhua |
||
|
Quantity |
- |
1 |
2 |
2 |
|
|
Sound Power Level |
|
dB(A) |
88 |
88 |
91 |
|
Sound Pressure Level at 1m |
|
dB(A) |
71 |
70 |
72 |
|
Dimension |
External Dimension (W*D*H) |
mm |
1260*1210*2260 |
2260*1255*2260 |
2260*1255*2260 |
|
Packing Dimension (W*D*H) |
mm |
1280*1230*2400 |
2280*1275*2400 |
2280*1275*2400 |
|
|
Weight |
Net Weight |
kg |
500 |
910 |
910 |
|
Gross Weight |
kg |
515 |
940 |
940 |
|
|
Operating Weight |
kg |
525 |
973 |
973 |
|
